Chemical Resistant Plastics Guide
Chemical Resistant Plastics: The Complete Guide to PTFE, PEEK, PVDF & More
Chemical resistant plastics are specialized polymer materials engineered to withstand exposure to corrosive substances, acids, bases, and solvents without degrading. These high-performance materials maintain structural integrity in aggressive chemical environments where conventional plastics and metals fail, making them essential for chemical processing, pharmaceutical manufacturing, and advanced industrial applications.
Understanding Chemical Resistant Plastics
In modern industrial manufacturing, chemical resistant plastics solve critical challenges across sectors from pharmaceutical production to semiconductor fabrication. These materials resist chemical attack through strong molecular bonds and stable polymer structures that create barriers against corrosive substances.
The science behind chemical resistance involves molecular impermeability preventing chemical infiltration, chemical inertness resisting reactions with corrosive substances, and structural stability maintaining properties under chemical stress. This combination enables reliable performance for years in environments that quickly destroy other materials.
Top 6 Chemical Resistant Plastics Explained
1. PTFE (Polytetrafluoroethylene): The Gold Standard
PTFE represents the pinnacle of chemical resistance, offering near-universal protection against acids, bases, solvents, and corrosive gases. Its carbon-fluorine backbone creates one of the strongest bonds in organic chemistry.
Key PTFE Properties:
- Resists virtually all industrial chemicals including concentrated acids
- Temperature range: -200°C to 260°C (-328°F to 500°F)
- Extremely low friction coefficient: 0.05-0.10
- Non-stick surface prevents material adhesion
- Excellent electrical insulation properties
Common Applications: Chemical processing equipment linings, gaskets and seals for corrosive service, pharmaceutical processing components, semiconductor manufacturing parts, and fuel cell membranes.
Innovation Note: Next-generation fuel cells use PTFE membranes for higher efficiency and durability, enabling clean energy solutions with extended operational lifespans.
2. PEEK (Polyether Ether Ketone): High-Performance Engineering Plastic
PEEK combines excellent chemical resistance with exceptional mechanical strength and high-temperature performance. This semi-crystalline thermoplastic excels where chemical resistance must pair with structural demands.
Key PEEK Properties:
- Excellent resistance to organic solvents and aqueous environments
- Tensile strength up to 100 MPa (14,500 psi)
- Continuous service temperature: 260°C (500°F)
- High purity with minimal outgassing
- Inherent flame resistance
Common Applications: Aerospace components, oil and gas downhole equipment, medical implants and surgical instruments, semiconductor processing equipment, and high-performance bearings.
Medical Innovation: 3D-printed PEEK orthopedic implants offer customized solutions with excellent biocompatibility and chemical resistance to bodily fluids.
3. PFA (Perfluoroalkoxy): The Processable Fluoropolymer
PFA delivers chemical resistance nearly equal to PTFE while offering melt-processability for complex part geometries impossible with traditional PTFE fabrication.
Key PFA Properties:
- Chemical resistance comparable to PTFE
- Melt-processable for injection molding and extrusion
- Excellent optical transparency: 95% light transmission
- Superior electrical insulation
- Maintains flexibility at cryogenic temperatures
Common Applications: Chemical processing tubing and fittings, pharmaceutical fluid handling, semiconductor wet processing, laboratory equipment coating, and high-purity chemical storage.
Emerging Use: Advanced microfluidic devices for point-of-care diagnostics leverage PFA's chemical resistance and optical clarity for accurate medical testing.
4. PVDF (Polyvinylidene Fluoride): The Versatile Fluoropolymer
PVDF balances chemical resistance, mechanical strength, and processing versatility at a more economical price than PTFE or PFA, making it ideal for large-scale chemical infrastructure.
Key PVDF Properties:
- Exceptional resistance to halogens and strong oxidizing acids
- Combines flexibility with high mechanical strength
- Temperature range: -40°C to 150°C (-40°F to 302°F)
- Outstanding UV and weathering resistance
- Unique piezoelectric properties
Common Applications: Chemical processing piping and tank linings, architectural coatings, lithium-ion battery components, water treatment membranes, and offshore oil and gas systems.
Smart Technology: PVDF-based smart fabrics combine chemical resistance with piezoelectric sensing for protective equipment that detects chemical threats.
5. PP (Polypropylene): The Cost-Effective Solution
Polypropylene proves effective chemical resistance doesn't require high costs. PP offers surprising resistance for many applications at a fraction of specialty polymer prices.
Key PP Properties:
- Good resistance to acids, bases, and many organic solvents
- Low density (0.91 g/cm³) for lightweight designs
- Easy welding, machining, and thermoforming
- Excellent fatigue resistance for living hinges
- Superior stress crack resistance
Common Applications: Chemical storage tanks, laboratory sinks and fume hoods, battery cases, ventilation ductwork, chemical pumps and valves, and medical packaging.
Sustainable Development: PP advances in next-generation battery separators, offering optimal balance of chemical resistance, porosity, and cost-effectiveness.
6. HDPE (High-Density Polyethylene): The Reliable Workhorse
HDPE demonstrates that simpler chemistry produces outstanding results. Its combination of chemical resistance, mechanical properties, and affordability makes it an industry staple.
Key HDPE Properties:
- Resists many common acids, bases, and aqueous solutions
- High impact strength even at low temperatures (Izod >900 J/m)
- Excellent stress crack resistance
- 100% recyclable through mechanical and chemical processes
- Good moisture barrier properties
Common Applications: Chemical storage tanks and secondary containment, corrosion-resistant piping, chemical drum liners, food processing equipment, landfill liners, and industrial wear components.
Circular Economy: Advanced chemical recycling technologies break HDPE down to monomer form for true closed-loop recycling maintaining virgin-grade properties.

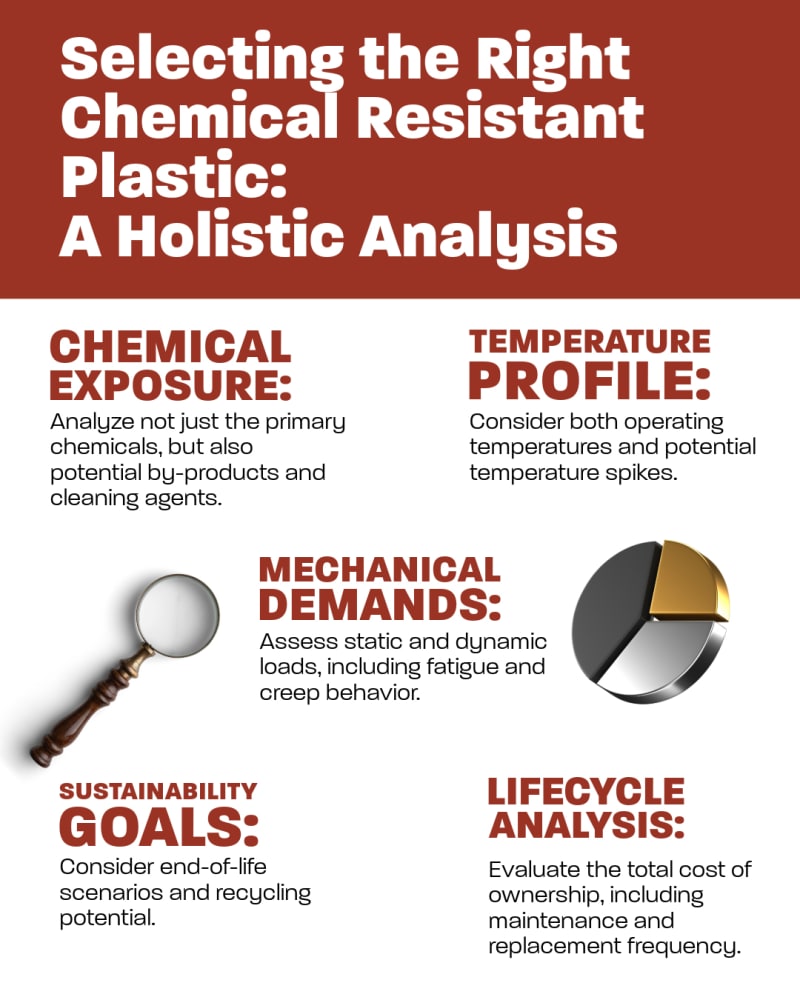

How to Select the Right Chemical Resistant Plastic
Choosing optimal materials requires evaluating multiple critical factors:
Chemical Compatibility: Identify all chemicals, concentrations, and temperatures. Consult detailed resistance charts and consider synergistic effects of multiple chemical exposures.
Temperature Requirements: Determine operating ranges including potential upset conditions. Some materials lose resistance at elevated temperatures.
Mechanical Demands: Evaluate required strength, stiffness, impact resistance, and wear characteristics. High-performance materials may justify costs for demanding applications.
Fabrication Methods: Consider machining, welding, thermoforming, or molding needs. PTFE requires specialized techniques while PVDF and PP weld easily.
Regulatory Compliance: Verify materials meet FDA food contact, USP Class VI biocompatibility, or semiconductor purity standards as required.
Total Cost Analysis: Balance material costs against lifecycle performance, maintenance requirements, and replacement frequency. Higher-cost materials often provide better total cost of ownership.
Future Innovations in Chemical Resistant Plastics
Total Plastics tracks exciting developments reshaping the chemical resistant plastics landscape:
Nanocomposite Enhancement: Incorporating graphene and carbon nanotubes achieves up to 40% improvements in chemical resistance and mechanical properties.
Bio-Based Alternatives: New bio-derived monomers yield chemical resistant plastics with up to 60% lower carbon footprints without sacrificing performance.
Self-Healing Polymers: Smart materials that autonomously repair micro-cracks extend component lifespan by 25%, reducing maintenance costs.
Additive Manufacturing: 3D printing enables complex geometries previously impossible, reducing part counts by 30% while improving performance.
Industries Served
Total Plastics provides chemical resistant materials across diverse sectors including chemical processing, pharmaceutical manufacturing, semiconductor fabrication, water treatment, oil and gas, food and beverage processing, and laboratory research environments.
Partner with Total Plastics
Chemical resistant plastics enable innovation across industries—from clean energy technologies to medical devices and safer chemical processing. At Total Plastics, we serve as your materials innovation partner.
We stock extensive inventories of PTFE, PEEK, PFA, PVDF, polypropylene, and HDPE in sheets, rods, tubes, and custom fabricated components. Our technical team provides application engineering support ensuring you select optimal materials for performance, safety, and cost-effectiveness.
Ready to explore how chemical resistant plastics can advance your project? Contact Total Plastics today. Let's discuss how our materials expertise can support your next breakthrough with confidence in long-term material performance.
Frequently Asked Questions
What is the most chemical resistant plastic?
PTFE (Polytetrafluoroethylene) is the most chemically resistant plastic, offering near-universal resistance to acids, bases, solvents, and corrosive gases. It resists virtually all industrial chemicals including concentrated sulfuric acid and sodium hydroxide. PTFE maintains exceptional resistance across extreme temperatures from -200°C to 260°C, making it the gold standard for demanding chemical processing applications.
How do I choose the right chemical resistant plastic?
Select materials by evaluating: all chemicals and concentrations you'll encounter, operating temperature ranges, mechanical property requirements, fabrication methods needed, regulatory compliance (FDA, USP, etc.), and lifecycle costs. Consult chemical resistance charts and work with material experts. For complex applications, test with actual chemicals and conditions before full implementation.
What's the difference between PTFE and PVDF?
PTFE offers superior chemical resistance to virtually all chemicals and higher temperature capability (260°C continuous) but requires specialized fabrication and costs more. PVDF provides excellent resistance to most acids and solvents, works at temperatures to 150°C, offers better mechanical strength, and costs 30-50% less. Choose PTFE for maximum chemical resistance; select PVDF for strong mechanical properties and cost-effectiveness.
Can chemical resistant plastics be welded or machined?
Yes, but techniques vary by material. PVDF, PP, and HDPE weld excellently using hot gas or heated tool methods. PEEK requires precise temperature control. PTFE cannot be welded conventionally but can be mechanically joined. For machining, most chemical resistant plastics machine well with sharp carbide tooling. PTFE requires special care due to softness. Always use proper coolant and sharp tools to prevent material degradation.
Are chemical resistant plastics FDA approved for food contact?
Many chemical resistant plastics are available in FDA-compliant grades meeting CFR Title 21 requirements for food contact. PTFE, PFA, PVDF, PP, and HDPE all have FDA-approved formulations. However, approval depends on specific grade and additives used. Always specify FDA compliance when ordering and request material certifications. Not all grades are FDA-approved—verify compliance for your specific application.
Which chemical resistant plastic is best for high temperatures?
PTFE and PEEK both excel at high temperatures. PTFE operates continuously at temperatures up to 260°C (500°F) with the best overall chemical resistance. PEEK also handles 260°C continuous service while offering superior mechanical strength and stiffness compared to PTFE. For applications requiring both high temperature and mechanical strength, PEEK is often the better choice. For maximum chemical resistance at high temperatures, choose PTFE.
